What is a password door lock? Its guideline and design

This job is actually a security password located digital code hair made utilizing the 8051-mini operator. The system features electronic control restimulations that handle the resulting load via a mathematical password. As soon as the proper code or security password has been actually gone into, the door opens up and the person is actually permitted to get into. If the code is incorrect, the door is going to be actually latched, refusiaccessity to the person.

GUIDELINE OF OPERATION

The major components of password door lock are an AT89S52 microcontroller, Keypad component, DC motor, as well an LCD Display. The AT89S52 microcontroller controls all procedures featuring allowing the password from the Keypad module, contrasting it to the key, steering the dc electric motor, as well as delivering conditions to LCD. The keypad is actually used as the input interface for inserting a password right into the microcontroller. Based on the security password got in the electric motor driver regulates the dc electric motor for opening/closing the padlock and also LCD act as the show for the keypad as well as showing standing information.

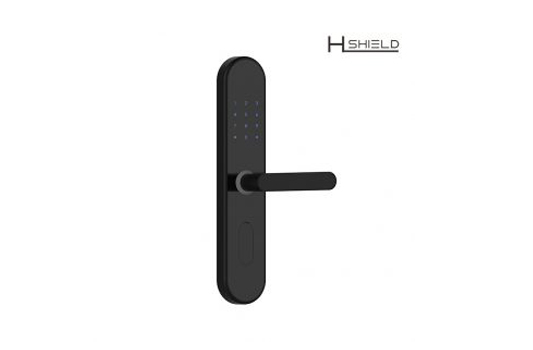

fingerprint smart lock

DESIGN AND IMPLEMENTATION

Oscillator Circuit Design: An 11.0592 MHz crystal oscillator is made use of to offer an outside time clock signal to the microcontroller. To guarantee soft operation, hooked up two 22pF ceramic capacitors. This crystal oscillator is actually hooked up in between pin 18 and 19 of the microcontroller.

Interfacing LCD as well as Keypad: First, a 1KΩ Potentiometer is linked to the LCD Display’s Contrast Adjust Pin (Pin 3). The LCD manage pins RS, RW, as well as E are connected to P2 GND, p2 and also.0.1 pins respectively. The 8 records lines of the LCD are hooked up to PORT1. The 4 ROW pins of the Keypad are hooked up to P3.0 to P3.3 and the four COLUMN pins of the Keypad are connected to P3.4 to P3.7 pins specifically.

Interfacing Motor Driver: The IN1 and also IN2 of the L293D Motor Driver are linked to P2.2 and also P2.3. The motor is actually connected in between OUT1 and also OUT2 pins of L293D.
